Technical Specifications
CONSTRUCTION LINING: Uniform seamless lining made from a blend of natural and synthetic rubber compounds. In addition, for Type-3 hoses lining is resistant to oil mist.

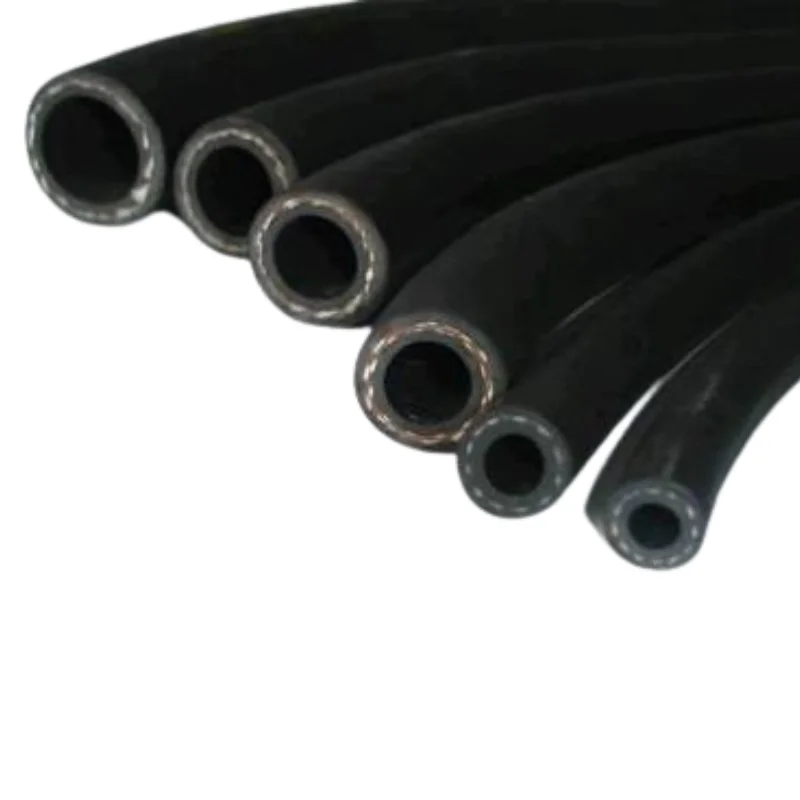

REINFORCEMENT: Piles of woven textile or braiding of high-strength synthetic fiber.
COVER: Smooth or cloth-marked finish, abrasion, and weather resistant natural rubber compound.
TEMPERATURE RANGE: – 31 F to + 158F
COLOR: Red, Blue, Green, Black, Grey, Yellow.
SAFETY FACTOR: Air Applications: IS: 446/1987 & ISO 2398/5A.
| HOSE SIZE | WORKING PRESSURE | BURSTING PRESSURE | LENGTH OF EACH ROLL | ||||
|---|---|---|---|---|---|---|---|
| I.D | O.D | in PSI | in BAR | in PSI | in BAR | ||
| Inch | mm | mn | 300 | 20 | 900 | 60 | 50/100 Meters |
| 3/16” | 5.00 | 12.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 1/4″ | 6.00 | 13.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 5/16” | 8.00 | 16.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 3/8” | 10.00 | 17.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 1/2″ | 13.00 | 21.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 5/8” | 16.00 | 24.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 3/4″ | 19.00 | 29.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
| 1” | 25.00 | 34.00 | 300 | 20 | 900 | 60 | 50/100 Meters |
