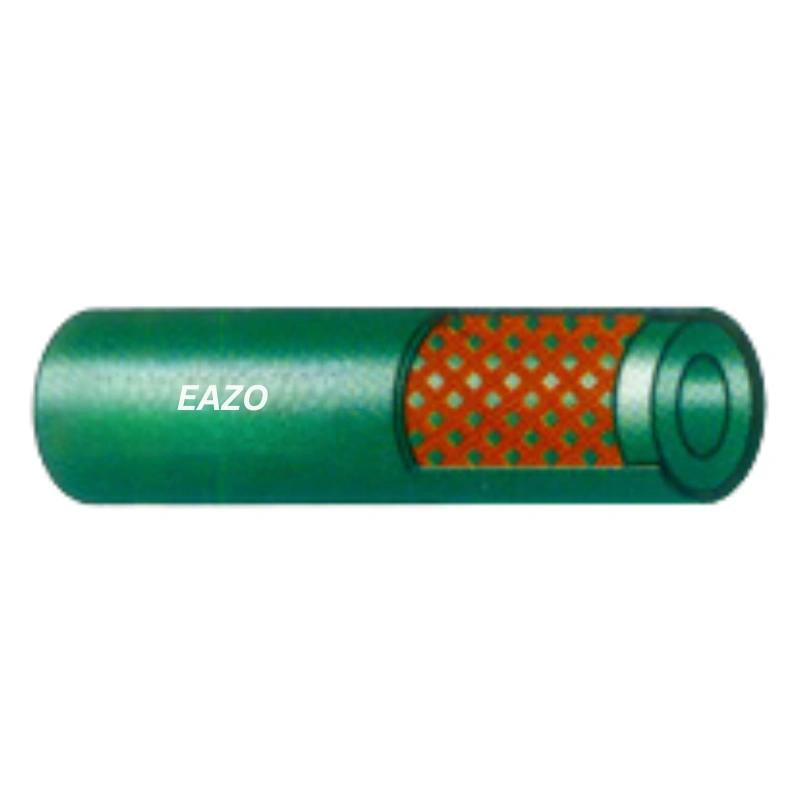

Applications: Metallurgical applications as of cooling of induction cables of electric furnaces and posts. (With or without asbestos cover)
Construction Tube: Special non-conductive white rubber tube
Reinforcement: Textile Reinforcement
Temperature: upto 932° F
Cover:
- Abrasion and heat resistant rubber cover.
- Glass fiber or asbestos cover on request.
| Nominal Bore in mm | Outer diameter in mm | Working Pressure | |
|---|---|---|---|
| Bar | PSI | ||
| 19.0 | 32.0 | 10 | 40 |
| 25.0 | 39.0 | 10 | 40 |
| 31.5 | 47.0 | 10 | 40 |
| 38.0 | 54.0 | 10 | 40 |
| 45.0 | 61.0 | 10 | 40 |
| 50.0 | 69.0 | 10 | 40 |
| 75.0 | 100.0 | 10 | 40 |
