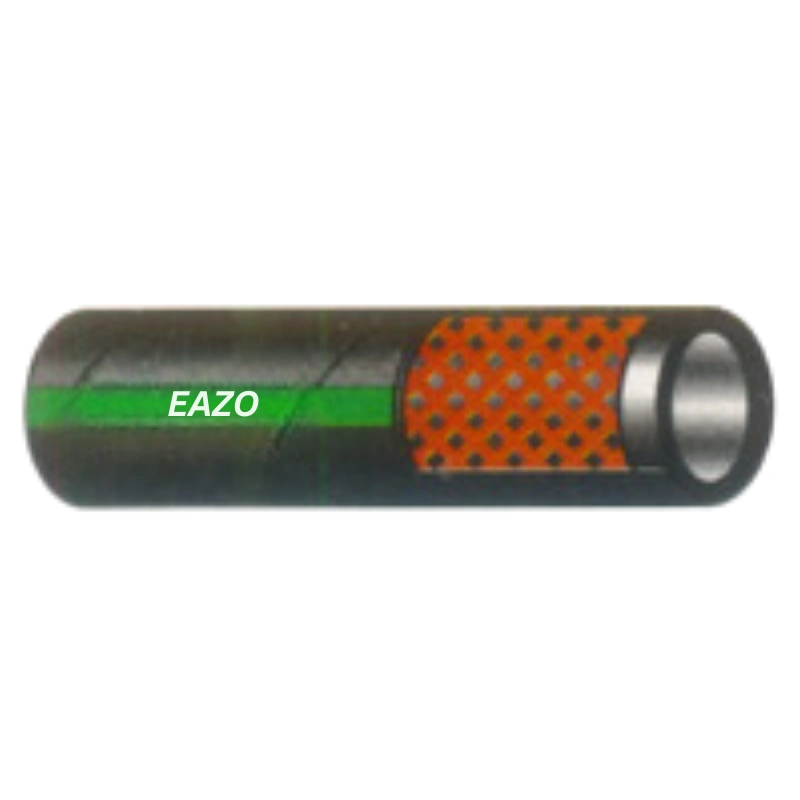

Applications: Recommended for use in steel mills, thermal plants, oil mills, fertilizer plants for conveying saturated steam at a specified steam pressure.
Construction Tube: Smooth uniform in bore & made from synthetic rubber compound.
Reinforcement: High tensile synthetic yarn.
Cover: Synthetic rubber compound resistant to abrasion.
Temp: Range upto 300° F
Note: Not recommended alternate change for steam water.
| Nominal Bore in mm | Tolerance on Nominal Bore in mm | Minimum Thickness of Cover in mm | Working Pressure in Bar | Bursting Pressure in Bar |
|---|---|---|---|---|
| 12.5 | ±0.75 | 2.00 / 1.00 | 10 | 40 |
| 16.0 | ±0.75 | 2.00 / 1.00 | 10 | 40 |
| 20.0 | ±0.75 | 2.00 / 1.00 | 10 | 40 |
| 25.0 | ±1.25 | 2.00 / 1.00 | 10 | 40 |
| 31.5 | ±1.25 | 2.00 / 1.00 | 10 | 40 |
| 38.0 | ±1.50 | 2.00 / 1.00 | 10 | 40 |
| 50.0 | ±1.50 | 2.00 / 1.00 | 10 | 40 |
